Chadwick Vertical Single Cylinder

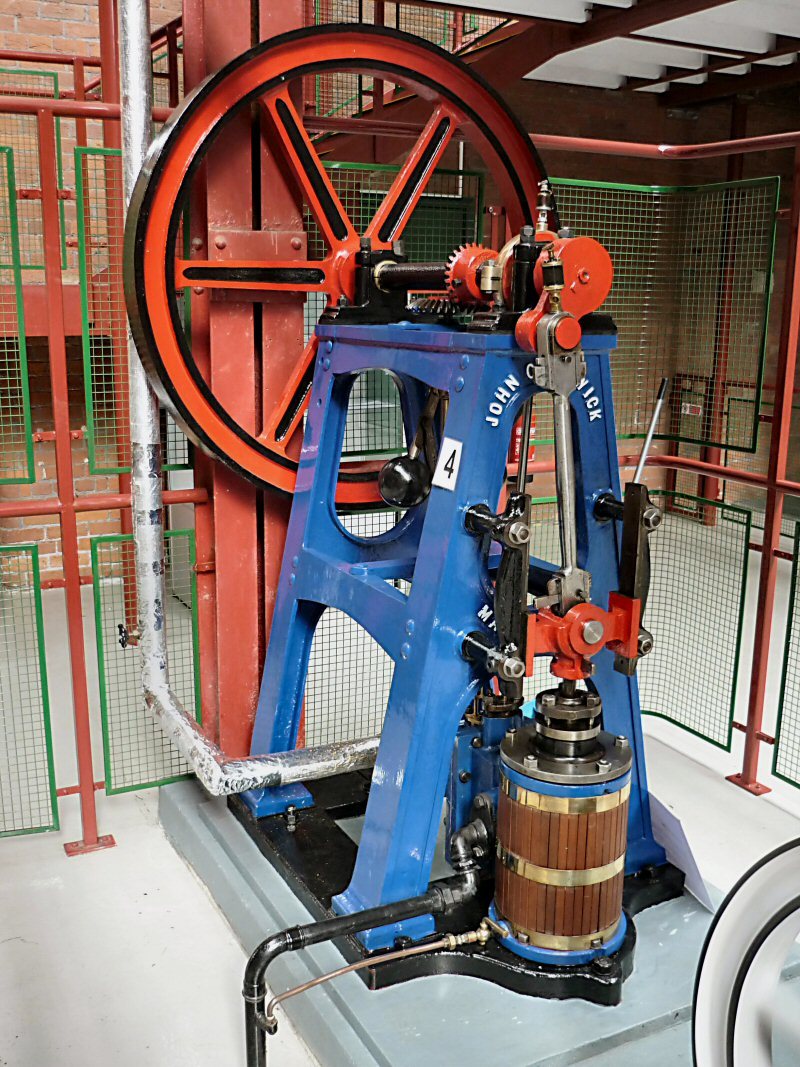

This small example of a vertical engine was used to pump water in Cellarsclough Mills at Marsden and was obtained by the Society in 1978 at the same time as the large beam engine.
![](images/chad1.jpg)
Built by John Chadwick Ltd of Manchester, it was very badly damaged and has received a considerable amount of restoration in the museum workshops.
![](images/chad2.jpg)

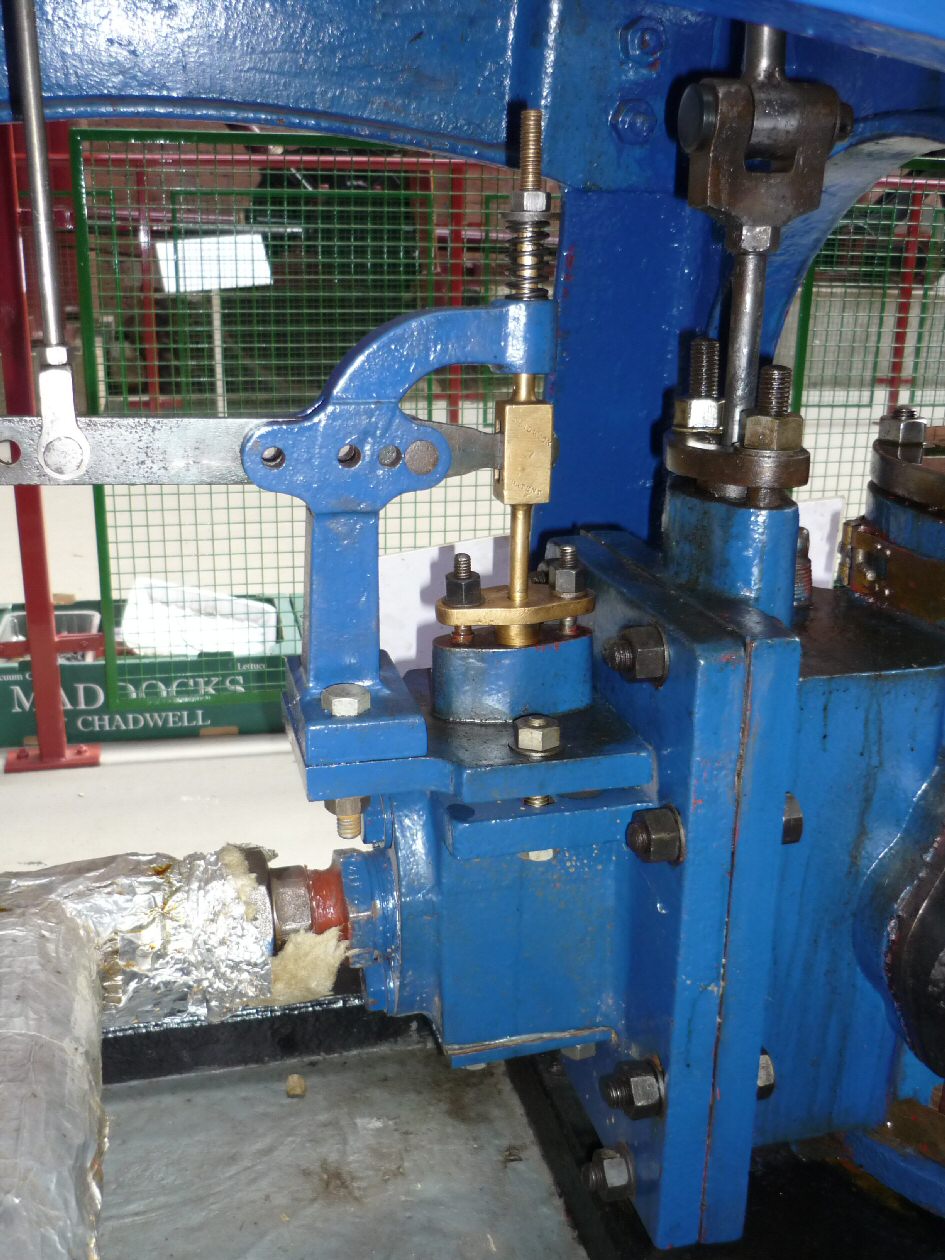

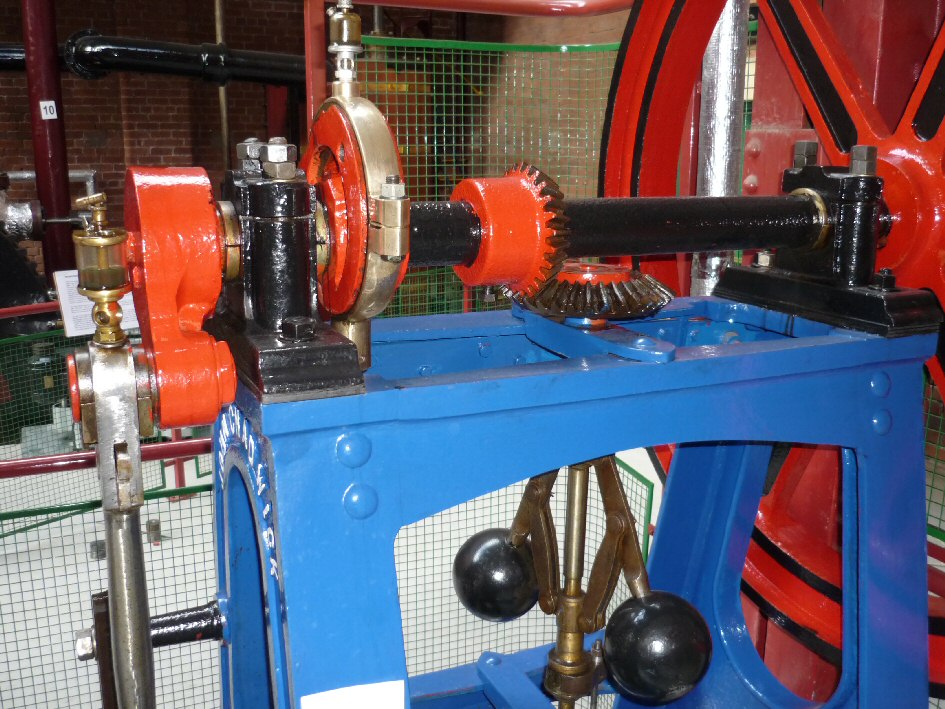

It is particularly interesting because the governor directly controls a Chadwick patented valve which is integral with the valve chest. The single cylinder is 6" bore and 11" stroke with machined guide bars for the cross-head.
